The following information is scanned directly from the official service manual for Timex caliber M24 manual wind movement which was in production between X and Y. This was kindly OCR’d by Rohit – If you’re in the USA and looking to have your vintage Timex repaired please look him up. Please excuse any errors. I will be reviewing these raw dumps of data in time to ensure their accuracy but believe some information is better than no information.

This document can be downloaded as a PDF from here.

The TIMEX Model 24 Movement [24.1]

Timex M24 service manual

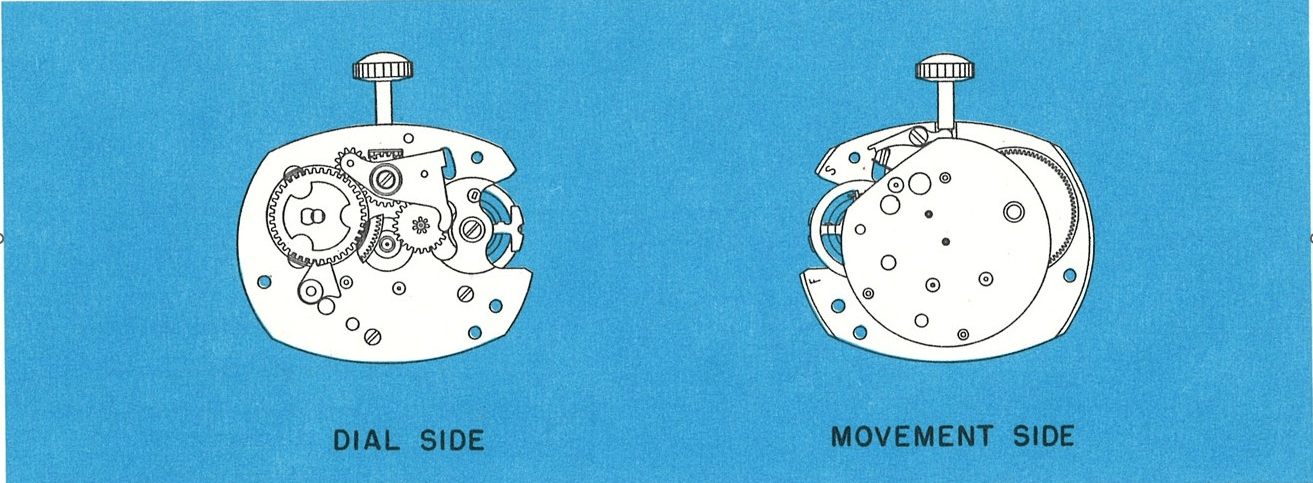

The TIMEX Model 24 is an 11 ¼”‘x9¼’” movement featuring “V-conic” bear­ings system and rugged two plate design. The TIMEX Model 24 movement is readily distinguished from other TIMEX models by the round movement plate.

Whereas most watches utilize bridges, TIMEX has constructed the Model 24 movement with full plates to take advantage of the accuracy inherent in this type of design. This accuracy insures complete interchangeability for the escape­ment and gear train without the need for selective fitting and adjustments which complicate the repair of most watches.

To clean the TIMEX Model 24 it is necessary to remove only the sweep second hand, dial, ratchet wheel and balance. The illustrations on Pages 24.3 through 24.5 show proper procedures. TIMEX has found through long and careful re­ search that the best method of cleaning is with only the above mentioned parts removed. The cleaning fluid, while removing any contamination from the move­ment will also remove oil from the gear train, pivots and holes.

If .further dismantling is required, removal of the movement plate will expose the gear train and associated parts. Reassembly should start with the dial plate, exercising normal care to insure proper positioning of pivots in their respective holes. The exploded view of the movement on Page 24.2 will guide reassembly.

Cleaning and re-oiling instructions for the Model 24 movement are given on Page 24.6.

Reassembly techniques are shown on Page 24.7.

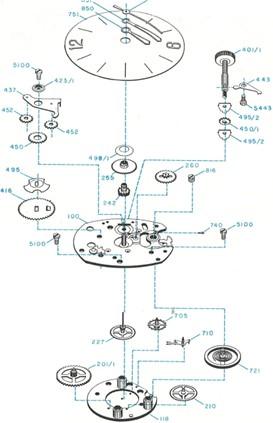

The TIMEX model 24 movement (exploded view) [24.2]

Timex M24 service manual

100 – Dial Plate Assembly
118 – Movement Assembly
180/1 – BarreI Complete ( with Mainspring)
201 /1 – Second Wheel Assembly
210 – Third Wheel Assembly
227 – Seconds Wheel Assembly
242 – Cannon Pinion Assembly
255 – Hour Wheel
260 – Minute Wheel Assembly
401/I – Winding Stem with Crown
416 – Ratchet Wheel
423/1 – Rocking Bar Bushing
437 – Rocking Bar
443 – Setting Lever
450 – Setting Wheel
450/1 – Stem Wind Pinion
452 – Wind and Set Pinion
495 – Ratchet Wheel Washer
495/2 – Winding Bridge
498/1 – Hour Wheel Washer
705 – Escape Wheel Washer
710 – Pallet Lever Assembly
721 – Balance Assembly
740 – Hairspring Wedge Pin
751 – Dial Assembly
816 – Balance Screw Assembly
850 – Hour Hand
851 – Minute Hand
852/ I – Sweep Second Hand
5100 – Pillar Screw
5443 – Set Lever Screw

Disassembly of Movement for Cleaning (model 24) [24.3]

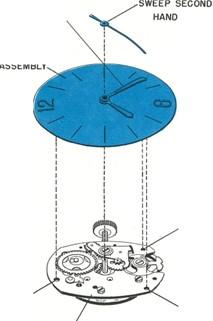

Removing the Dial and Hands

Timex M24 service manual - Removing the dial and hands

a) Remove sweep second hand. Do not remove the minute or hour hand.

DIAL HOLDER

Timex M24 service manual- Dial Tabs

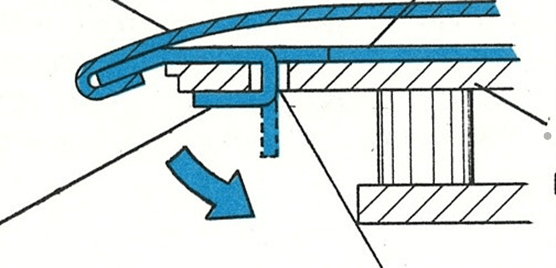

b) The dial holder, to which the dial is clamped, is held an the move­ment by means of three tabs which are bent through dial holes, onto the dial plate.

Note: On some models a dial holder is not used. On these models, three tabs are formed on the dial and are used in the same manner as those on the dial hold­er.

Disassembly of Movement for Cleaning Cont’d. [24.4]

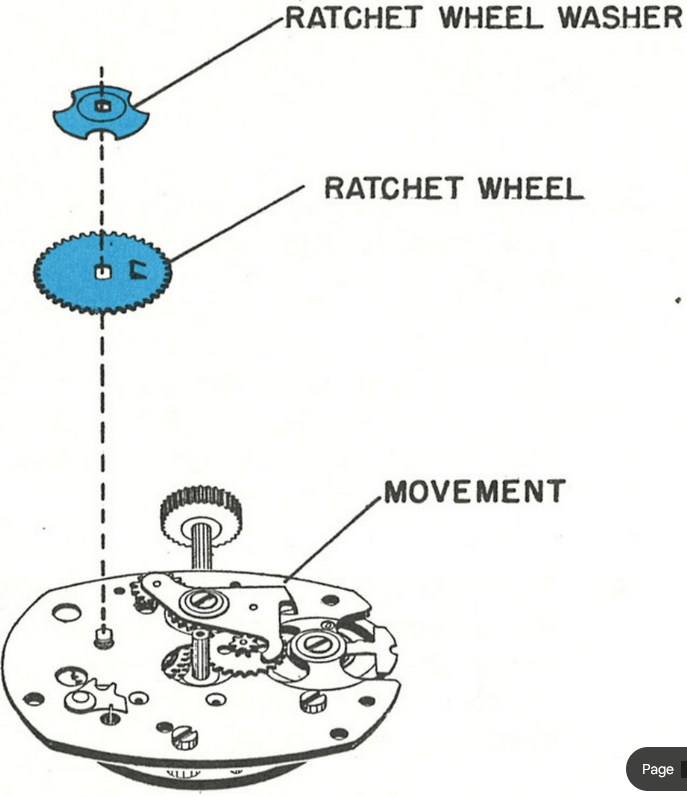

Removing the Ratchet Wheel

Timex M24 service manual - removing the ratchet wheel

The next step in preparing the move­ment for cleaning should be the re­moval of the ratchet wheel and ratchet wheel washer. Proceed as follows:

a) Grasp the crown in the fingers of one hand and release the click by holding the click away from the ratchet wheel. Let the crown re­volve slowly in the fingers, being careful not to let the crown slip.

b) When the mainspring has been fully let down, remove the ratchet wheel washer and ratchet wheel.

Removing the Crown and Stem

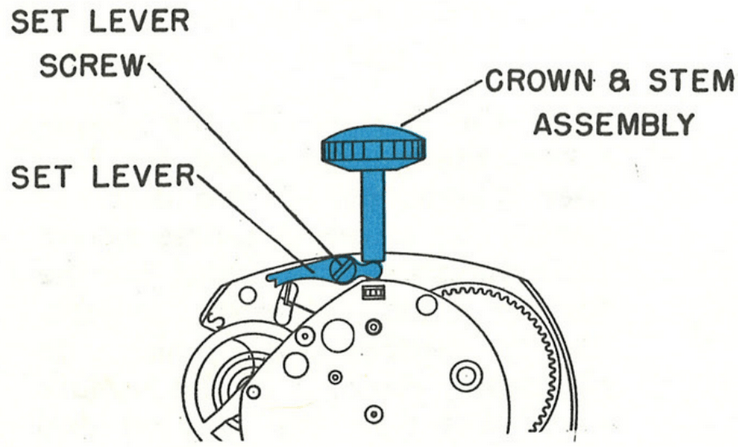

To remove the crown and stem as­sembly, invert the movement so that the movement plate is facing you. Turn the set lever screw approximate­ly one turn and lift the tail of the set lever out of engagement with the stem. The crown and stem can now be removed.

Disassembly of Movement for Cleaning Cont’d. [24.5]

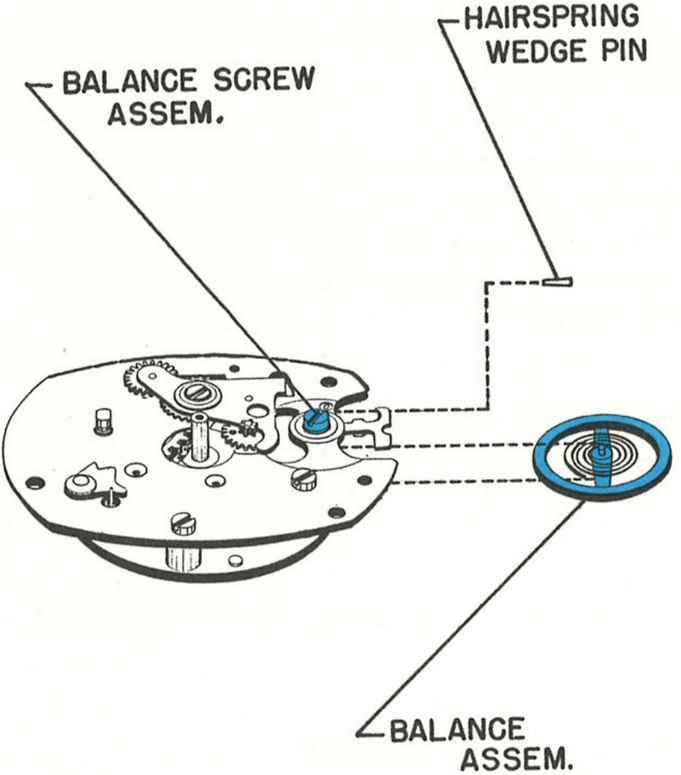

Removing the Balance

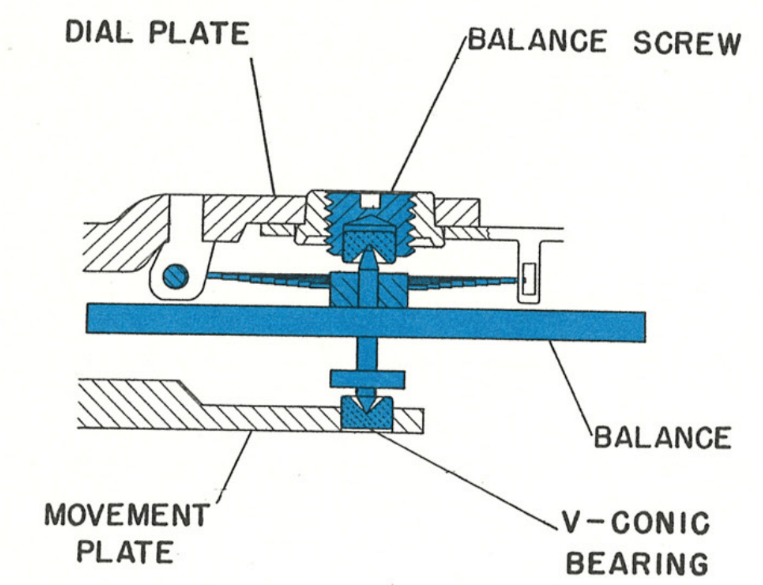

Two “V-conic” bearings are used as bearings for the balance staff on the TIMEX Model 24 movement. The bearing on the dial plate is driven into a screw so that fine end adjustment is possible.

Removal of the balance assembly should be carried out in the following manner:

a) Remove the hairspring wedge pin, being careful not to distort either the pin or the hairspring.

bl Rotate the balance slowly until the hairspring tail is free of the hairspring wedge pin bracket and the regulator.

c) Loosen the balance screw assembly (counterclockwise direction) using a suitable screwdriver, until the end of the balance staff is free of the “V-conic” bearing. During the loosening of the screw, only minimum downward pressure should be applied with the screw­ driver, as excessive downward pressure could seriously damage the balance staff points.

d) Carefully remove the balance as­sembly.

Cleaning the Model 24 Movement [24.6]

After removal of the balance, and the other parts mentioned in Pages 24.3 through 24.5, the movement is ready to be cleaned.

If a cleaning machine is used, place the movement in the basket with the dial plate down ta insure proper drainage of the fluid from the mainspring barrel. It should be well swirled in the cleaning fluid after which two sets of rinsing fluid should be used. The final cleaning fluid must be absolutely clean. After cleaning, the movement should be thoroughly dried.

If a cleaning machine is not available, the same procedure should be followed manually, by re-inserting the stem, grasping the movement firmly around the stem and shaking it in the cleaning and rinsing fluids to insure that the fluid will pass through the entire mechanism.

The balance assembly should be cleaned separately in a small jar to prevent damage ta the hairspring.

Only standard watch cleaning solutions should be used throughout.

Lubricating the Model 24 Movement

The· movement should be re-oiled in the normal manner using only high grade watch oils (oil used in factory assembly is Elgin M56b). The mainspring is permanently lubricated with a solid coating which is not affected by normal cleaning solutions and should, therefore, not be ailed.

The upper pivot of the escape wheel can be oiled through the holes in the minute wheel.

The “V-conic” bearings should b oiled no less than ¾ full before replacing the balance.

Oil both the top and bottom sides of the intermediate wind pinion and wind and set pinions.

Reassembly of the Model 24 [24.7]

Replace the balance carefully into the movement by tilting the wheel and in­ setting first, the dial side pivot (hair­ spring side) then, the movement side pivot into the “V-conic bearing.” Ad­ just the balance screw enough to hold the balance in place. By rotating the balance, insert the hairspring into the regulator slot and hairspring wedge pin bracket. Before re-pinning the hairspring, make certain the impulse pin is within the slot on the fork. Re­ pin the hairspring making sure that the wedge pin is straight and true, as any distortion to the pin could interfere with the normal “breathing” of the hairspring. The endshake is now finally adjusted using caution to apply only minimum downward pres­ sure to the balance screw as excessive pressure could damage the points of the balance staff.

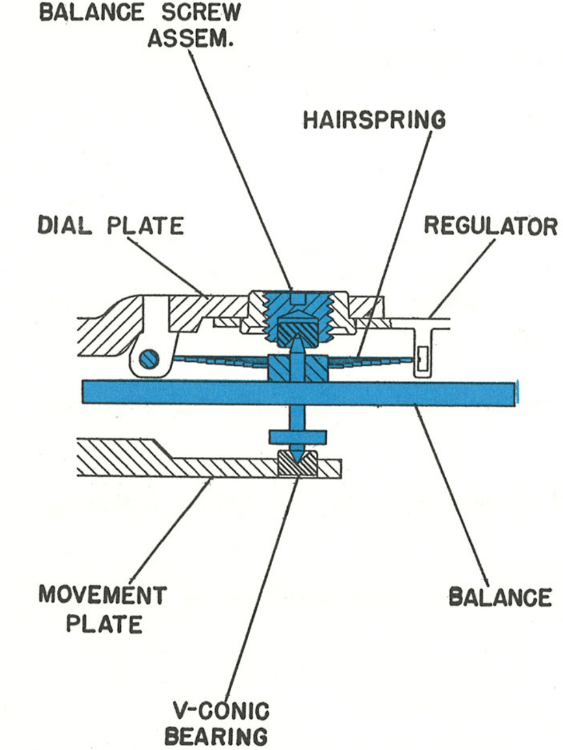

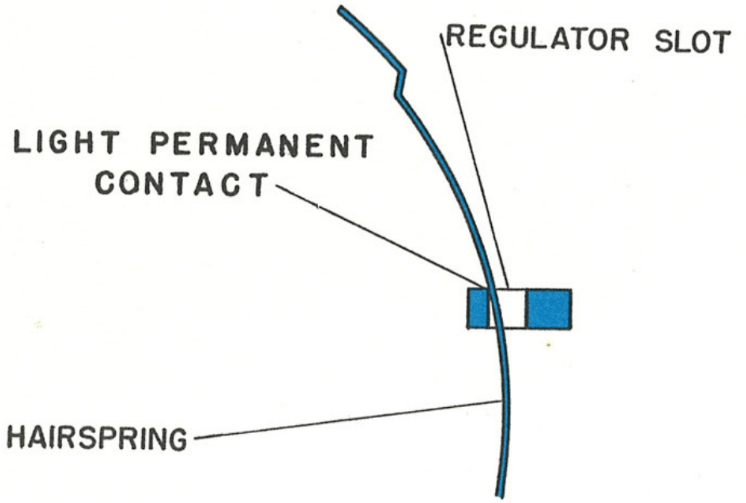

Inspect the hairspring to be certain that it is properly adjusted. As shown by the diagram, the hairspring should be in light permanent contact with the inside edge of the regulator slot. The hairspring should not leave the inside edge of the regulator slot dur­ing any port of its amplitude.

When replacing the dial assembly, set the hour and minute hands to 12 :00 before bending the tabs on the dial holder to secure the dial. If the min­ute hand hos been removed, replace it on the dial assembly together with the friction and cannon pinions-before
the dial assembly is put on the move­ment.

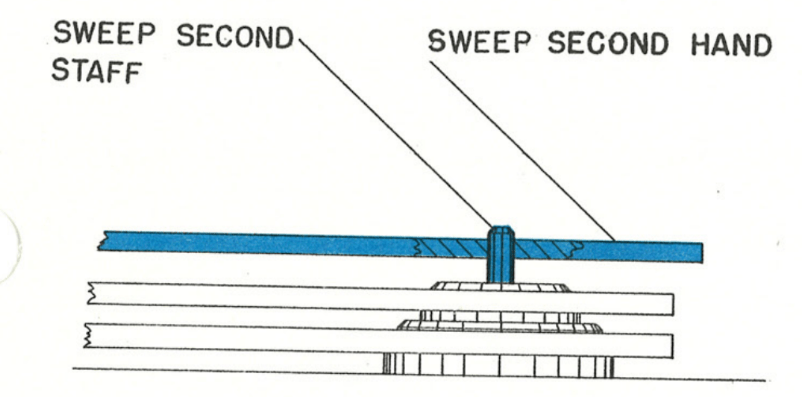

Replace the sweep second hand by driving it just below the end of the sweep second staff as shown in the diagram. Be certain the sweep hand is set below the chamfer on the top of the staff.
